Product Detail
Product Introduction

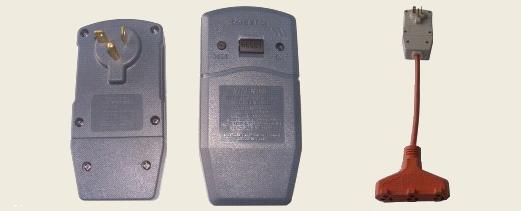

Application:XY-240series AFCI is suitable for rated voltage 240V, rated current 15A to 30A circuit.It has arc prevention, leakage prevention and other functions.It is used on the high power electrical facilities.
Complies: UL1699 Standard
Features： Arc fault and leakage protectionMax breaking capacity:
Specifications:
Max breaking capacity:2000A
Operation temperatures:-35℃ ~ +85℃
Max humidity:95%
Application:XY-240series AFCI is suitable for rated voltage 240V, rated current 15A to 30A circuit.It has arc prevention, leakage prevention and other functions.It is used on the high power electrical facilities.
Complies: UL1699 Standard
Features： Arc fault and leakage protectionMax breaking capacity:
Specifications:
Max breaking capacity:2000A
Operation temperatures:-35℃ ~ +85℃
Max humidity:95%
No. |
Type | Rated Voltage（V） | Rated Current（A） | Rated Power（W） | Frequency（HZ） | Regular Wire | Memo |
| 1 | XY-24015A | 240 | 15 | 3600 | 50/60 | SJT/SPT-3C*14AWG | |
| 2 | XY-24020A | 240 | 20 | 4800 | 50/60 | SJT/SPT-3C*12AWG | |
| 3 | XY-24030A | 240 | 30 | 7200 | 50/60 | SJT/SPT-3C*10AWG |
